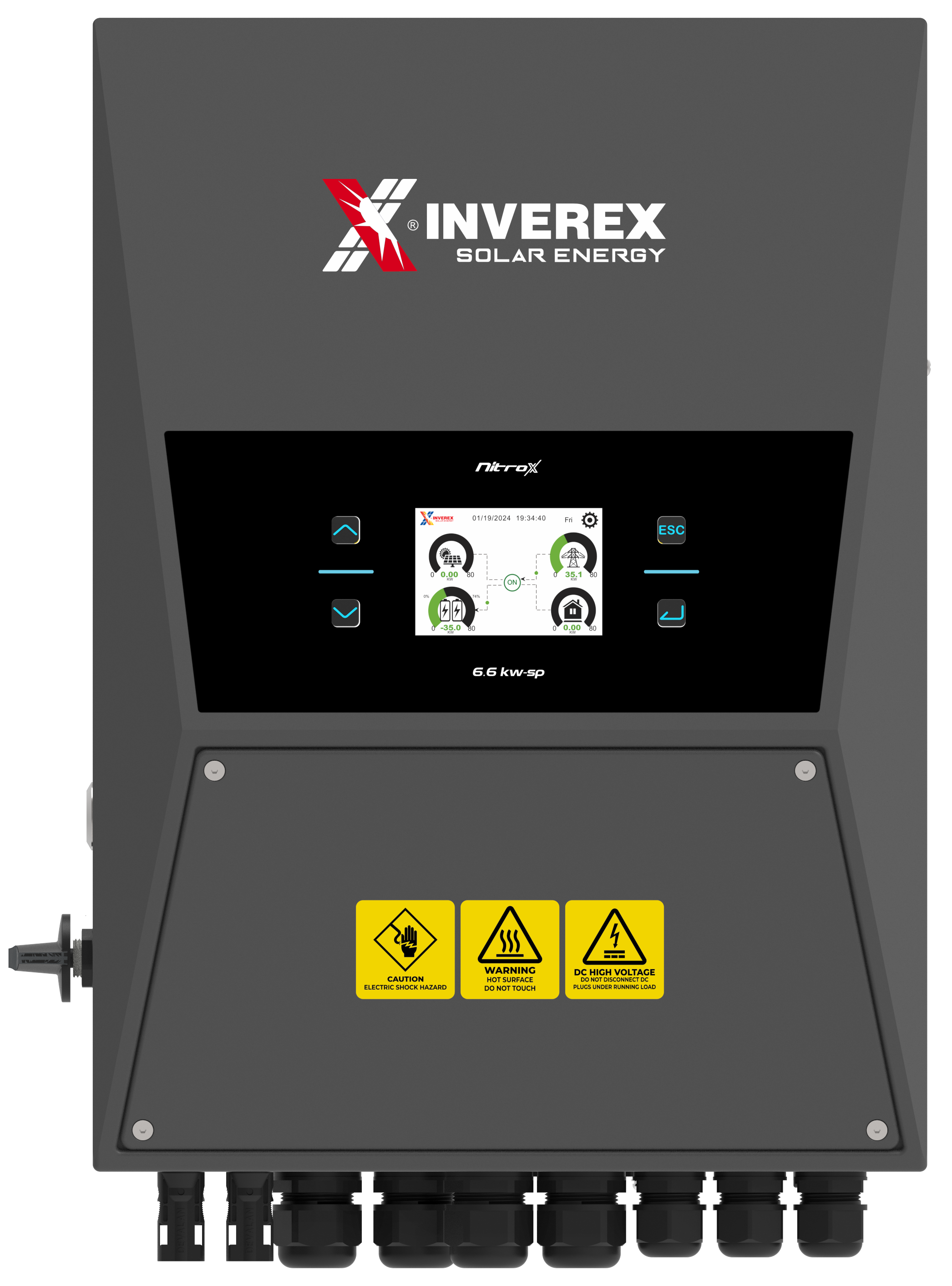

Nitrox 6.6 kW

Inverex Nitrox Series 6.6 kW, IP65 Hybrid Inverter, 10.5 kW PV

Topology	Hybrid
Phase	Single Phase
Voltage Class	Low Voltage
Rated Power	6.6 kW
MPPT Trackers	2
Protection (IP)	IP65
10.5KW PV Input	Wide 150–425VDC MPPT for max energy capture
Dual MPPTs	Independent strings (2/1+1) for efficient tracking
140A Charge/Discharge	Fast cycles, perfect for large systems
Parallel Ready	Stack up to 16 units, both on-grid & off-grid
Touch LCD + IP65	Vibrant screen in weatherproof casing
AC Coupling	Retrofit-friendly for system upgrades
Time-Based Battery Mode	6 customizable time slots for charging/discharging
Generator Support	Stores DG energy for hybrid setups
Silent Operation	Under 30 dB noise, suitable for indoor use
Air Cooling	Smart thermal control from -40°C to +60°C
Advanced Protections	Overcurrent, islanding, surge, fault detection
High Efficiency	97.6% peak efficiency with <0.5% DC ripple
Smart Communication	RS485/RS232/CAN + optional WiFi/4G
5-Year Warranty	Backed by trusted Inverex support
